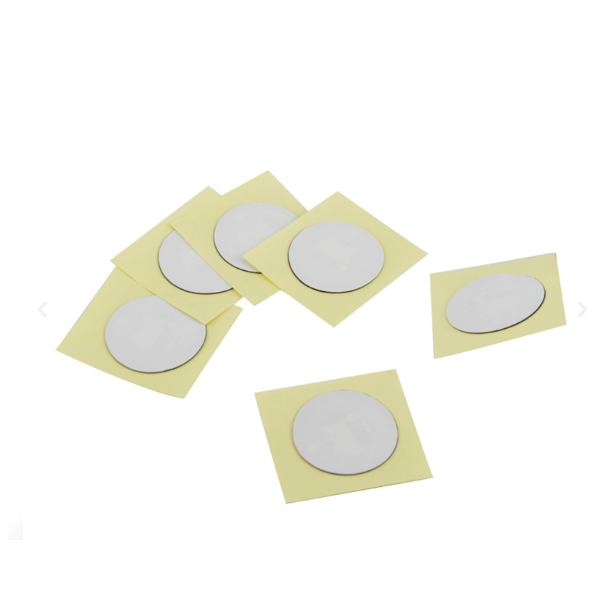

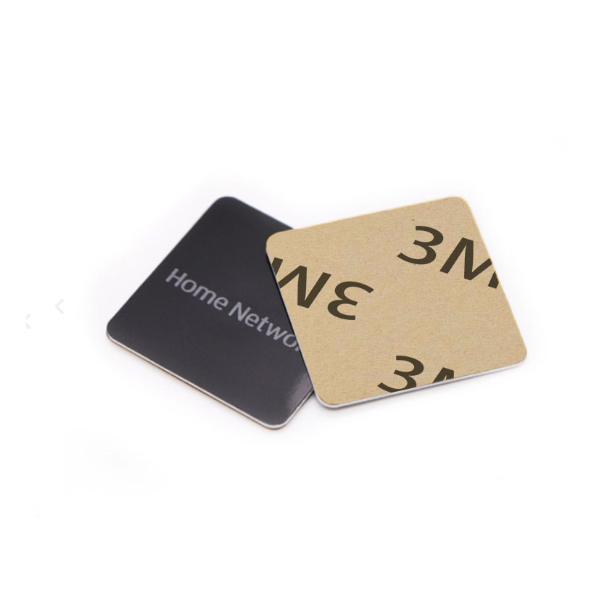

This RFID Anti-metal tag is embedded with the most classic RFID chip- Mifare 1K, working on 13.56 MHz, among high-frequency anti-metal tag. It can work on the metal surface, for example, sticking on your mobile phone to achieve some NFC interaction.
XRFID Mifare 1K NFC anti-metal tags not only meet industry standards but also have superior quality and low cost. Each tag has passed the strict quality inspection before it reaches your hands. Besides, we can provide customized service of NFC anti-metal tags.
FEATURES
Waterproof, acid-proof, alkali-proof, and collision-resistant
Contactless transmission of data and supply energy
Operating frequency of 13.56MHz
Data transfer of 106 Kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Typical ticketing transaction time of<100ms (including backup management)
Operating distance up to 100mm (depending on antenna geometry and reader configuration)
Various styles and colors are available
APPLICATIONS
Mobile interaction
Warehouse assets management
Medical device management
Consumer electronics
Vehicle Management
Indoor Equipment Management
Application of other metal surfaces
COMMONLY USED SIZE
NFC Anti-metal tags come in various sizes. Here are some commonly used sizes of NFC anti-metal tags as follows.
| Style | Size | Available Chip |

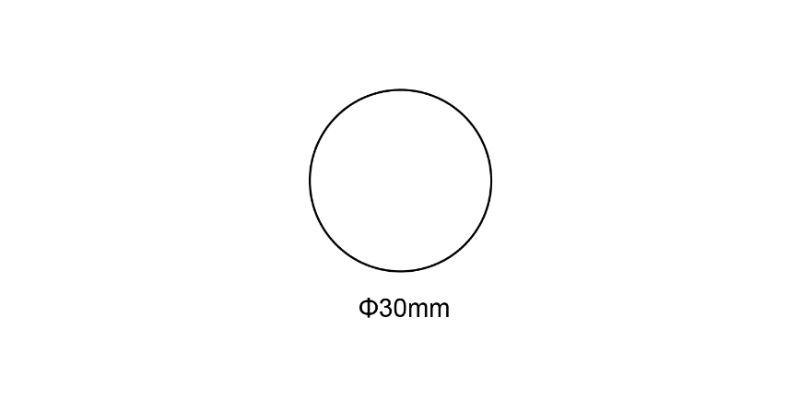

 | φ30 mm | Mifare 1k, Ntag213, Ntag215, Ntag216,etc. |

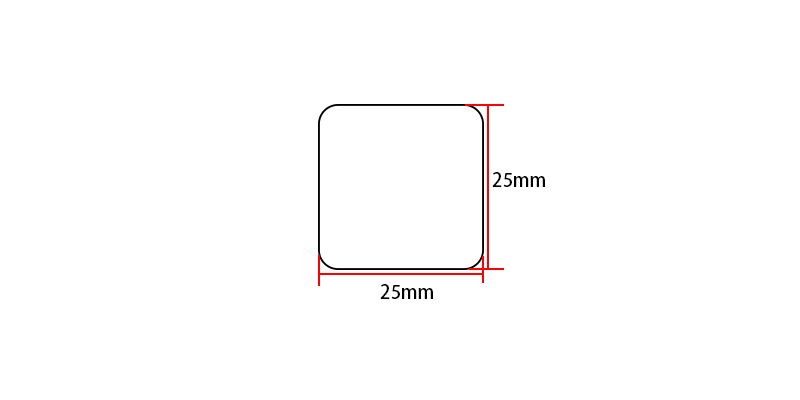

 | 25*25 mm | Mifare 1k,Ntag213, Ntag215, Ntag216,etc. |

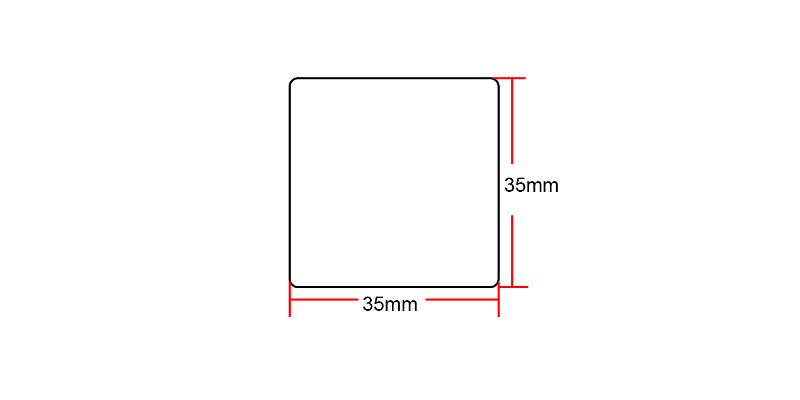

 | 35*35mm | Mifare 1k, Ntag213, Ntag215, Ntag216,etc. |

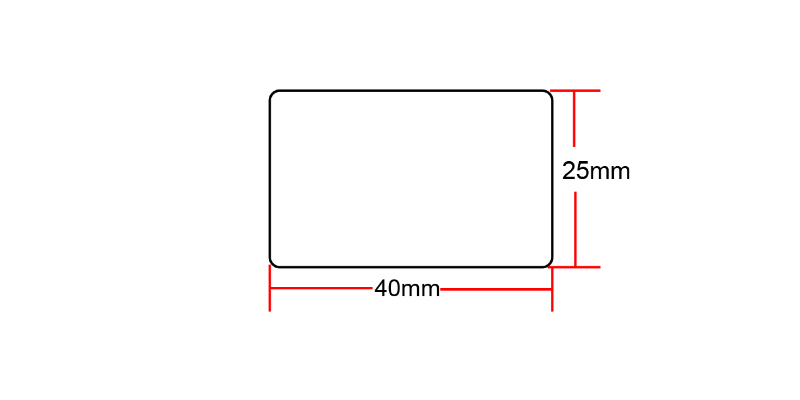

 | 25*40mm | Mifare 1k, Ntag213, Ntag215, Ntag216,etc. |
