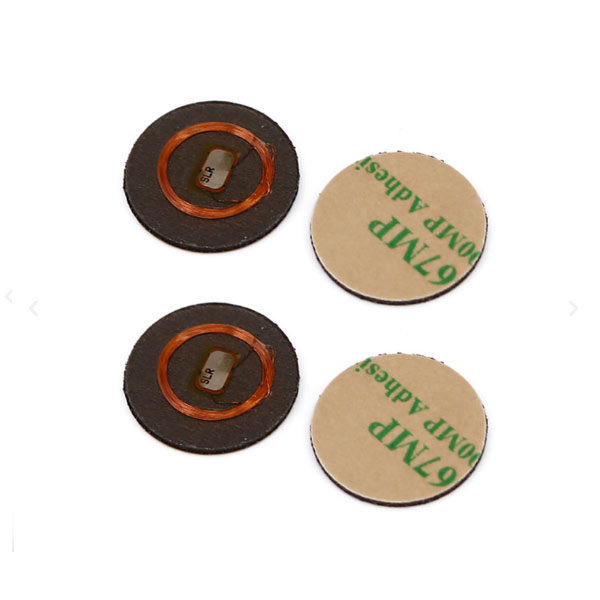

Anti-metal Ntag216 NFC Coin tag belongs to the NFC anti-metal tag family, which works well on the metal surface. This tag stands out from NFC anti-metal tags because of its chip-Ntag216 with a larger storage capacity: 924 bytes of total memory and 888 bytes of user memory. And it has another feature that is similar in shape and size to coins.
Like Ntag213 and Ntag215 tags, Ntag216 NFC coin tags also have good RF performance and high security. xrfid can offer all kinds of NFC anti-metal tags, and we are a professional supplier who deserves your trust.
FEATURES
Operating frequency of 13.56MHz
Waterproof, durable, and collision-resistant
Can be erased and reprogrammed repeatedly
100% compatible with NFC-enabled devices
888 bytes of user memory, 924 bytes of total memory
32-bit password authentication to protect the data stored in the tag
Interated originality signature to make anti-counterfeiting simple and efficient
Manufacturer programmed 7-byte UID for each device
Pre-programmed capability container with one-time programmable bits
Field programmable read-only locking function
UID ASCII mirror for automatic serialization of NDEF messages
APPLICATION
Mobile interaction
Warehouse assets management
IT asset management
Medical device management
Consumer electronics
Application of other metal surfaces
COMMONLY USED SIZE
Xrfid NFC Anti-metal tags come in various sizes. Here are some commonly used sizes of NFC anti-metal tags as follows.
| Style | Size | Available Chip |

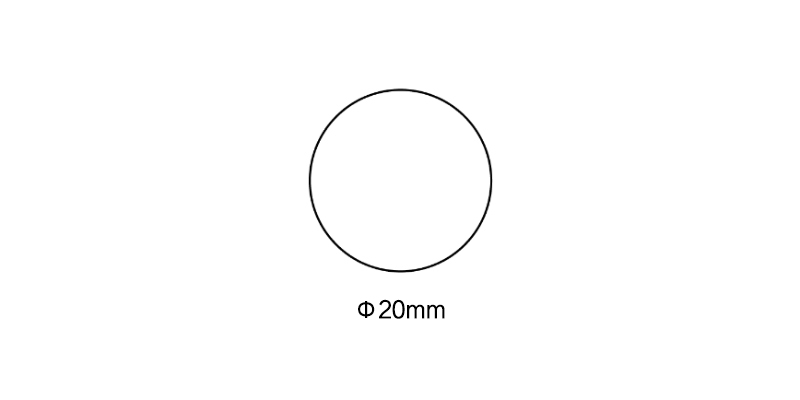

 | φ20 mm | Ntag213, Ntag215, Ntag216,etc. |

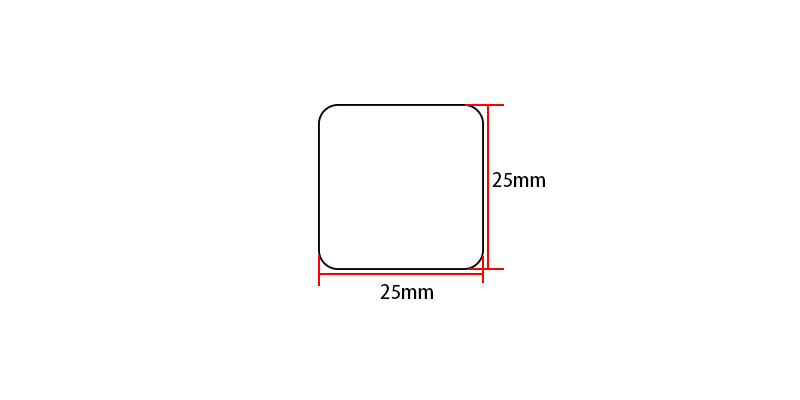

 | 25*25 mm | Ntag213, Ntag215, Ntag216,etc. |

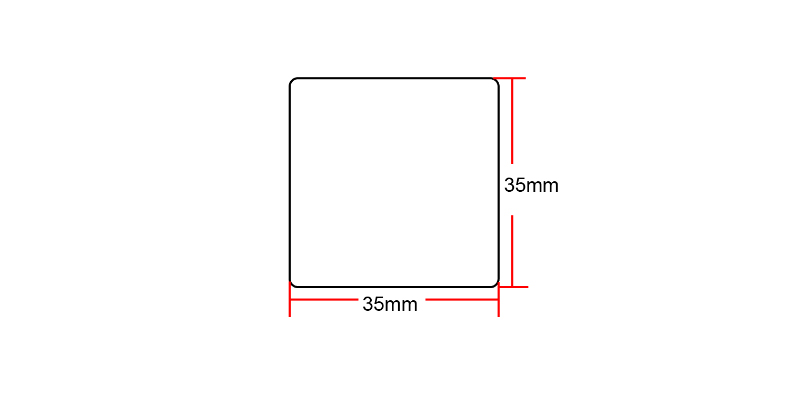

 | 35*35mm | Ntag213, Ntag215, Ntag216,etc. |

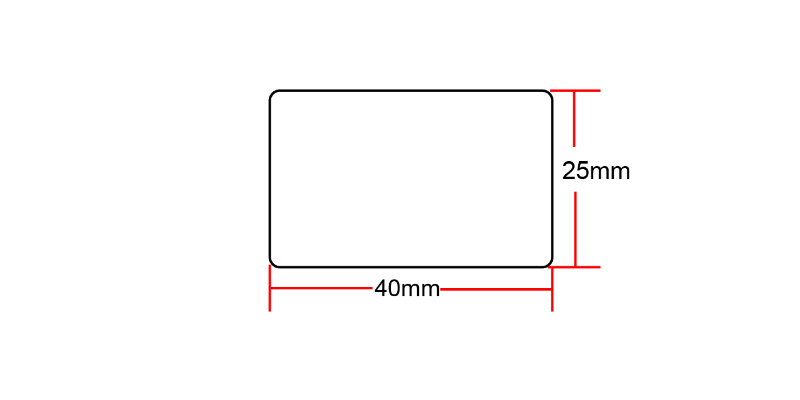

 | 40*25mm | Ntag213, Ntag215, Ntag216,etc. |
| Item | Anti-metal Ntag216 NFC Coin Tag |
| Material | PVC、PET、Coated paper, etc. |
| Chip | NTAG216 |
| Frequency | 13.56MHz |
| Protocol | ISO14443A |
| Color | Customizable |
| Size | Custom |
| Total Memory | 504 bytes |
| Reading distance | 0-10cm |
| Write Endurance | 100000 times |
| Working Temperature | -25°C to 65°C |
| Data Retention Time | 10 years |
| Printing Options | Silk-screen printing, Laser Engraving, CMYK full color, Pantone, etc. |
| Crafts Available | Logo or number printing, Bar code, QR code, etc. |
| Samples | Free samples are available upon request |
