RFID Tags / RFID Inlay
The irregular contactless card inlay is core component of irregular RFID card, such as: mini card, keychain card, epoxy card, etc. We choose reliable card components and connect them reliable. We can control the thickness of the inlay per the requirement of customers. XRFID provides reliable and convenient semi-product for the manufacturer of finished contactless cards.
Different sizes, materials, chips are available, and you can personalize it.
24-hour one-on-one service, Fast delivery, and Good packaging.
Features
1, The shape and size of the antenna can be customized to adapt specific needs,
2, layout and thickness can be customized
3, trimmed reference edges and printed cross marks is available to make the further process easier.
4, flat and clean surface, stands unequaled torsion and bending
5, prefect electrical performance, reliable and durable.
Specification:
| Material | Packing: PVC |
Antenna: copper coil, aluminum | |
Thickness | 0.5mm±0.02mm, customizable |
Layout & size | 5*5, 3*8, 4*8, 5*8, 4*10 , customizable |
Interface | Contactless |
Frequency | 13.56MHz |
Chip | HF: Mifare S50, S70 / Ultralight/ Ntag213/ Desfire(4k, 8k) / iCode slix / legic, FM11RF08 / C50 / ISSI4439 |
LF: EM4100 / EM4305/ EM4450 / ATA5577 / TK4100 | |
UHF: Alien series and Impinj series | |
Chip Status | COB or MOA4, thickness between 0.35~0.38mm |
Antenna Technique: | HF: Aluminum etching, pre-winding copper coil, ultrasonic wire implanting / ultrasonic welding |
Antenna Size: | Round: Φ10~40mm, |
Rectangle: L: 20~60mm, W: 20-60mm | |
Technique | Direct pressure technique |
Double-sided sheltering (ensures the flatness of the chip position, no bumps) | |
Pack | 50pcs/bag |
Storage temperature | -25°C ~ +65°C |
Application:
irregular card inlay is mainly applicated to produce irregular cards, such as: epoxy card, keychain card, mini card and other eye-catching cards.
Manufacturing Photo:

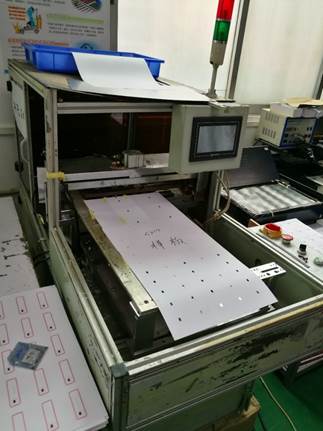

The stepping chip hole punching machine punches hole in the chip position on the PVC/PET sheet, which leave the space for the chip, so that the chip will not bump up on the card surface. Therefore, all xrfid HF card inlays production is with lower faulty rate during laminating and can guarantee the flatness of the prelam, and make the final card with flat surface.
Proudtek’s stepping chip hole punching machine is with very flexible working model, it can punch hole in any position of the PVC sheet, so we can make card inlay with very flexible layout.
Our advantage:
Proudtek’s flexible stepping chip hole punching machine allows us to customize high quality irregular card inlay and multi-frequency card inlay economically.

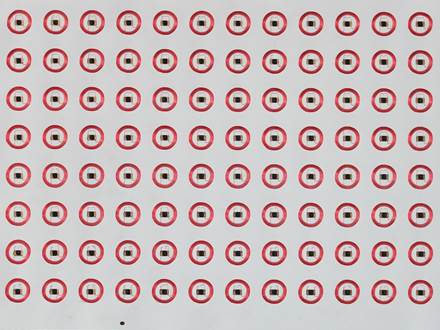

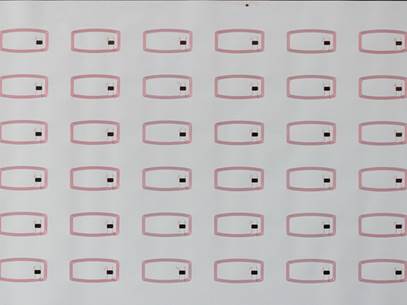

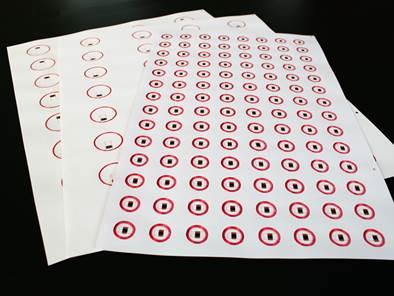

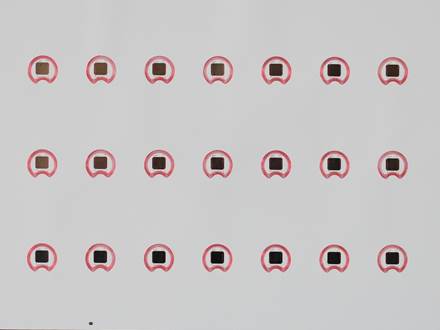

Product Show
The Card inlay is a very important component of RFID smart cards, which directly affects the performance of the card. Therefore, you are better to choose a reliable supplier.
Fudan F08 RFID Inlay-FUDANF08RI-001 is one type of RFID Inlay, it's Consists of the chip, the sensor antenna,it's Packaged ina standard PVC, ABS, PET material card, No exposed parts of the card.the Fu
TK4100 RFID Inlay-TK4100RI-001 is one type of RFID Inlay, it's Consists of the chip, the sensor antenna,it's Packaged in a standard PVC, ABS, PET material card, No exposed parts of the card.the TK4100
Smart card inlay is layers of PVC/PET laminated with CPU chip and printed with antenna. It is a great solution to produce Java card. Smart card inlay is the critical and core component of a JAVA card.
